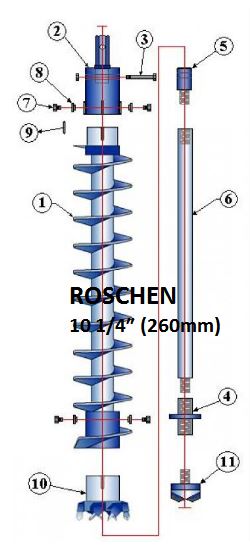

Seção de trado

1

10 1/4 \"(260mm) TK HD Hollow Stem Auger 10 1/4\" (260mm) I.D. x 14 1/2 \"(362mm) O.D. x 5 '(1524mm)

A1014300HD.

265

120.2

2

10 1/4 \"(260 mm) TK HD Drive Cap com 3 1/4\" (83mm) Conector de Auger

Adc101433hd.

84

38.1

2

10 1/4 \"(260mm) TK HD Drive Cap com 4 1/4\" (108 mm) Conector de Auger

Adc101434hd.

86

39

3

# 4 porca e parafuso para adaptador de haste-to-cap

ANAB4.

0.9

0.4

4

10 1/8 \"(257mm) Conector Pilot Bit (NW Box - 3 1/2\" API Reg. Caixa)

APBC1018NWB.

36

16.3

4

10 1/8 \"(257mm) Conector Pilot Bit (caixa NWJ - 3 1/2\" API REG. Caixa)

APBC1018NWJB.

36

16.3

5

Adaptador de haste-to-cap - NW PIN

Arcanwp.

7

3.2

5

Adaptador de Rod-a-Cap - NWJ PIN

Arcanwjp.

6

2.7

6

NW Brill Rod - 5 '(1524mm)

Adr5nw.

31

14.1

6

Haste de broca NWJ - 5 '(1524mm)

Adr5nwj.

35

15.9

Peças de reparo de trado

1a.

10 1/4 \"(260mm) TK HD Pin Tool articulados

Atj10143phd.

32

14.1

1b.

10 1/4 \"(260mm) TK HD Box Ferramenta articulação

Atj10143bhd.

31

14

7

Parafuso de bloqueio de eixo alb4

Alb4.

0.4

0.2

8

ABN3-M Augher Buching Porca

Abn3-m.

0.2

0.1

9

Chave de unidade ADK3 Auger

Adk3.

0.3

0.1

Cutterheads e bits pilotos

10

10 1/4 \"(260mm) TK HD Blade Cutterhead - 15\" (381mm) O.D.

ACH1014350HD.

52

23.6

10

10 1/4 \"(260 mm) TK HD Spade Cutterhead - 15\" (381mm) O.D.

ACH1014351HD.

48

21.8

10

10 1/4 \"(260 mm) TK HD Blade / Bullet Cutterhead - 15\" (381mm) O.D.

ACH1014360HD.

55

24.9

10

10 1/4 \"(260 mm) TK HD Spade / Bullet Cutterhead - 15\" (381mm) O.D.

ACH1014361HD.

54

24.5

10

10 1/4 \"(260mm) TK HD Bullet Cutterhead - 15\" (381mm) O.D.

ACH1014370HD.

56

25.4

11

10 1/8 \"(257mm) Apex Pilot Bit, 3 1/2\" API REG. Alfinete

APB1018APX.

33

15

11

10 1/8 \"(257mm) Bullet Pilot Bit, 3 1/2\" API REG. Alfinete

APB1018BUL.

46

20.9
