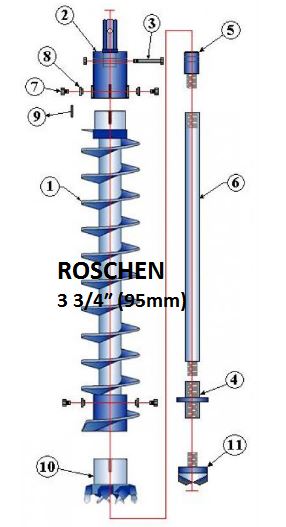

Seção de trado

1

3 3/4 \"(95mm) DK HD Hollow Stem Auger 3 3/4\" (95mm) I.D. x 7 1/8 \"(181mm) O.D. x 5 '(1524mm)

84

38.1

2

3 3/4 \"(95mm) DK HD Drive Cap com 1 5/8\" (41mm) Hex Pin

25

11.3

2

3 3/4 \"(95mm) DK HD Drive Cap com 2\" (51mm) Hex Pin

28

12.7

3

# 4 porca e parafuso para adaptador de haste-to-cap

0.9

0.4

4

3 5/8 \"(92mm) Conector Pilot Bit (AW Box - 2 3/8\" API REG. Caixa)

8

3.6

4

3 5/8 \"(92mm) Conector Pilot Bit (AWJ Box - 2 3/8\" API REG. Caixa)

11

5

4

3 5/8 \"(92mm) Conector Pilot Bit (NW Box - 2 3/8\" API REG. Caixa)

11

5

4

3 5/8 \"(92mm) conector piloto (caixa NWJ - 2 3/8\" API REG. Caixa)

12

5.4

5

Adaptador de Rod-to-Cap - AW PIN

3

1.4

5

Adaptador de Rod-To-Cap - AWJ PIN

3

1.4

5

Adaptador de haste-to-cap - NW PIN

7

3.2

5

Adaptador de Rod-a-Cap - NWJ PIN

6

2.7

6

AW Brill Rod - 5 '(1524mm)

21

9.5

6

AWJ Drill Rod - 5 '(1524mm)

23

10.4

6

NW Brill Rod - 5 '(1524mm)

31

14.1

6

Haste de broca NWJ - 5 '(1524mm)

35

15.9

Peças de reparo de trado

1a.

3 3/4 \"(95mm) DK HD Pin Tool articulados

8

3.6

1b.

3 3/4 \"(95mm) DK HD Box Tool Joint

7

3.2

7

Parafuso de bloqueio de Auger Alb3

0.4

0.2

8

ABN3 Auger Buching Porca

0.2

0.1

9

Chave de unidade ADK2 Auger

0.3

0.1

Cutterheads e bits pilotos

10

3 3/4 \"(95mm) DK HD Blade Cutterhead - 8 1/2\" (216 mm) O.D.

16

7.3

10

3 3/4 \"(95mm) DK HD Spade Cutterhead - 8 1/2\" (216 mm) O.D.

20

9.1

10

3 3/4 \"(95mm) DK HD Blade / Cutterhead - 8 1/2\" (216mm) O.D.

20

9.1

10

3 3/4 \"(95mm) DK HD Spade / Cutterhead - 8 1/2\" (216mm) O.D.

22

10

10

3 3/4 \"(95 mm) DK HD Bullet Cutterhead - 8 1/2\" (216 mm) O.D.

22

10

10

3 3/4 \"(95mm) DK HD 5-T Cutterhead - 8 1/2\" (216 mm) O.D.

22

10

11

3 5/8 \"(92mm) Apex Pilot Bit, 2 3/8\" API REG. Alfinete

5

2.3

11

3 5/8 \"(92mm) Bullet piloto bit, 2 3/8\" API REG. Alfinete

8

4.1
