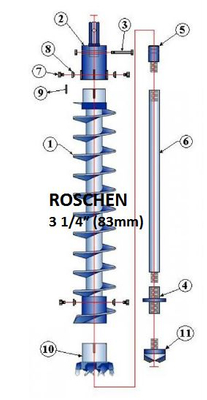

Seção de trado

1

3 1/4 \"(83mm) DK HD Hollow Stem Auger 3 1/4\" (83mm) I.D. x 6 5/8 \"(168 mm) O.D. x 5 '(1524mm)

81

36.7

2

3 1/4 \"(83mm) DK HD Drive Cap com 1 5/8\" (41mm) Hex PIN

22

10

2

3 1/4 \"(83mm) DK HD Drive Cap com 2\" (51mm) Hex Pin

23

10.4

3

# 3 porca e parafuso para adaptador de haste-to-cap

0.9

0.4

4

3 1/8 \"(79mm) Conector Pilot Bit (AW Box - 4 Thd N-Rod Box)

11

5

4

3 1/8 \"(79mm) conector piloto (AWJ Box - 4 Thd N-rod Box)

12

5.4

4

3 1/8 \"(79mm) Conector Pilot Bit (caixa NW - 4 Thd N-Rod Box)

8

3.6

4

3 1/8 \"(79mm) Conector Pilot Bit (nwj Box - 4 Thd N-Rod Box)

11

5

5

Adaptador de Rod-to-Cap - AW PIN

3

1.4

5

Adaptador de Rod-To-Cap - AWJ PIN

3

1.4

5

Adaptador de haste-to-cap - NW PIN

7

3.2

5

Adaptador de Rod-a-Cap - NWJ PIN

6

2.7

6

AW Brill Rod - 5 '(1524mm)

21

9.5

6

AWJ Drill Rod - 5 '(1524mm)

23

10.4

6

NW Brill Rod - 5 '(1524mm)

31

14.1

6

Haste de broca NWJ - 5 '(1524mm)

35

15.9

Peças de reparo de trado

1a.

3 1/4 \"(83mm) DK HD PIN Ferramenta articulação

7

3.2

1b.

3 1/4 \"(83mm) DK HD Box Tool Junta

6

2.7

7

Parafuso de bloqueio de Auger Alb3

0.3

0.1

8

ABN3 Auger Buching Porca

0.3

0.1

9

Chave de unidade ADK2 Auger

0.3

0.1

Cutterheads e bits pilotos

10

3 1/4 \"(83mm) DK Lâmina Cutterhead - 7 1/2\" (190mm) O.D.

11

5

10

3 1/4 \"(83mm) DK Spade Cutterhead - 7 1/2\" (190mm) O.D.

12

5.5

10

3 1/4 \"(83mm) DK Blade / Cutterhead - 7 1/2\" (190mm) O.D.

14

6.4

10

3 1/4 \"(83mm) DK Spade / Cutterhead - 7 1/2\" (190mm) O.D.

9

4.1

10

3 1/4 \"(83mm) DK Bullet Cutterhead - 7 1/2\" (190mm) O.D.

10

4.5

10

3 1/4 \"(83mm) DK 5-T Cutterhead - 7 1/2\" (190mm) O.D.

10

4.5

11

3 1/8 \"(79mm) piloto piloto de ápice, pino de n-haste 4 thrd

2.5

1.3

11

3 1/8 \"(79mm) piloto piloto de bala, 4-thrd pino n-haste

5

2.3
